Brand
Astig toric –VUE
Material
Toric Hydrophobic Foldable
Single Piece, Achromatic, UV Filter
Model
MO-T-615
MO-T-600
Optic Size
6.00 mm
6.00 mm
Haptic Size
12.50mm
13.00mm
Haptic Design
Single Haptic
Optic
Biconvex ,Posterior Toric Aspheric Surface
Edge Design
Continuous 360 degree Square edge
AC Depth
5.25mm
Incission Size
2.6 mm 2.4 mm
Diopter Range
Toric Cylinder power 1.5D to 6.0D in0.75 Increments
Spherical power 10.0D to 35.0D in0.5 Increments
Refractive Index
1.4902
A constant
UltraSound
Optical Biometry
Nominal
A
118.4
118.7
Haigis
a0
1.65
1.78
Haigis
a1
0.400
0.400
Haigis
a2
0.100
0.100
HofferQ
pACD
5.02
5.61
Holl.
1 Const sf
1.57
1.67
SRK/T
A
118.4
118.7
SRK II
A
118.6
119.9
Model
In IOL Plane
MO-T-615(T1.50)
1.50
MO-T-615(T2.25)
2.25
MO-T-615(T3.00)
3.00
MO-T-615(T3.75)
3.75
MO-T-615(T4.50)
4.50
MO-T-615(T5.25)
5.25
MO-T-615(T6.00)
6.00
Brand
Astig toric
Material
Toric Hydrophilic Foldable
Single Piece, Achromatic, UV Filter
Model
ATT-655
ATT-657
ATT-659
Optic Size
6.00 mm
6.00 mm
6.00 mm
Haptic Size
12.50mm
12.50mm
12.50mm
Haptic Design
Single Haptic
Double Haptic
Plate Haptic
Optic
Biconvex /Convex , Posterior Toric Aspheric Surface
Edge Design
Continuous 360 degree Square edge
AC Depth
5.0mm
Incission Size
2.6 mm
Diopter Range
Toric Cylinder power 1.5D to 6.0D in0.5 Increments
Spherical power 10.0D to 35.0D in0.5 Increments
Refractive Index
1.4588
A constant
UltraSound
Optical Biometry
Haigis
a0
1.34
0.568
Haigis
a1
0.400
0.400
Haigis
a2
0.100
0.100
HofferQ
pACD
5.02
4.80
Holl.
Const sf
1.28
1.02
SRK/T
A
117.8
117.88
SRK II
A
118.1
118.0
Model
In IOL Plane
MO-T-615(T1.50)
1.50
MO-T-615(T2.25)
2.25
MO-T-615(T3.00)
3.00
MO-T-615(T3.75)
3.75
MO-T-615(T4.50)
4.50
MO-T-615(T5.25)
5.25
MO-T-615(T6.00)
6.00
As the quantity of toric procedures increases, trust your legacy to an IOL that delivers exceptional visual quality.
The Astig Toric IOL adheres to a high standard of optical excellence so you can give each patient, the sharp, brilliant vision they never thought possible.

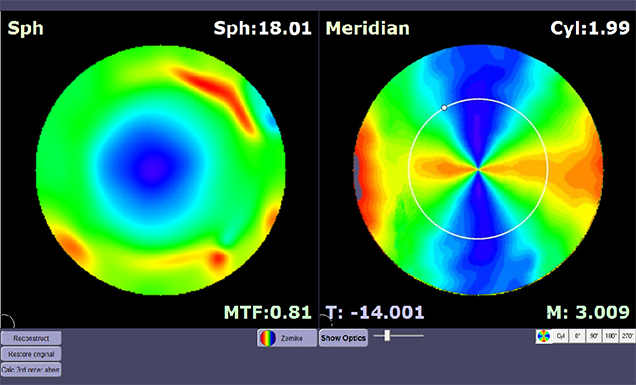

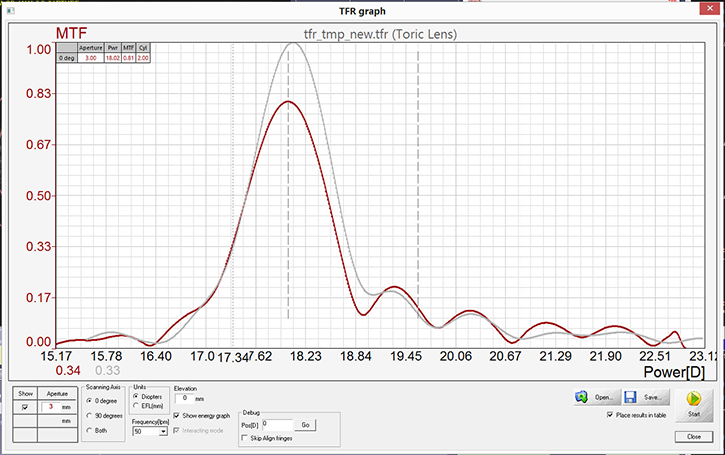

In a clinical study evaluating the Astig Toric IOLs for astigmatism correction in cataract patients, 94% of eyes achieved < 0.5 D of residual refractive cylinder, and 98% of eyes achieved. **Modular Transfer Function (MTF) is a measure of the amount of contrast transferred by the optics in a visual system. The higher the MTF value, the more contrast transferred to the image resulting in higher image contrast.
Your patients are far from ready to throw in the towel. They’ve got places to go and sights to see and they’ll see them all through the IOL you choose. Give them a lens designed to function in real-world conditions, such as in low light or without glasses, so they can experience each day with outstanding clarity.
What good is a lens if it’s not built to last? Make your legacy one you continually be proud of with an IOL that delivers exceptional stability, high patient satisfaction and stunning visual performance.
Stability is especially important for those with astigmatism. Toric IOLs demonstrate an excellent 2.74O mean axis change between the baseline and six months.
Rotation of the Astig Toric 1-Piece IOL away from its intended axis can reduce its astigmatic correction. Misalignment greater than 300 may increase
Postoperative refractive cylinder. If necessary, lens repositioning should occur as early as possible prior to lens encapsulation.
