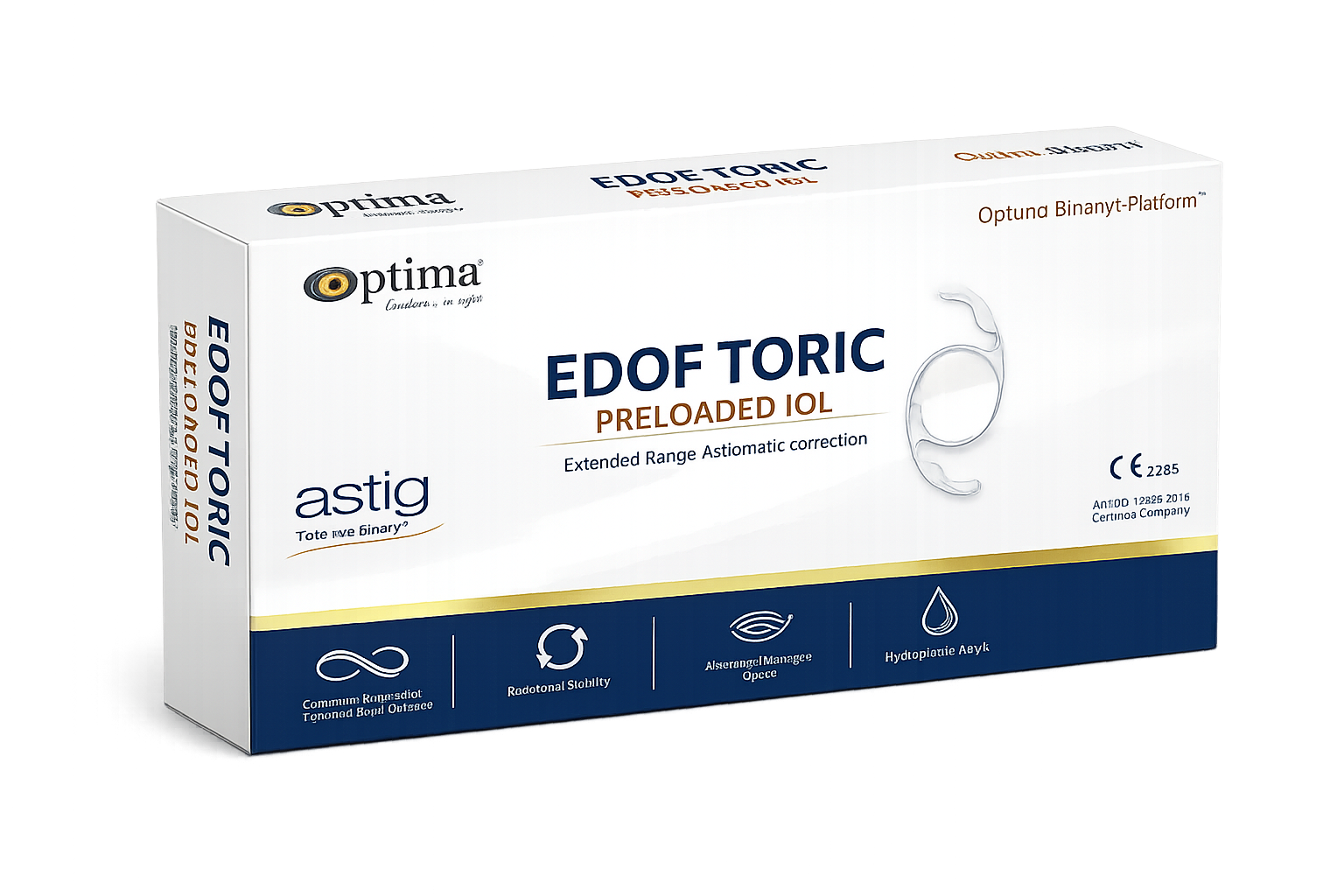

| Brand | astig | EDOF TORIC | ||
|---|---|---|---|---|
| Material | Hydrophobic Foldable, Refractive Index: 1.492 | |||
| Models | MFH 615 | MFH 617 | ||

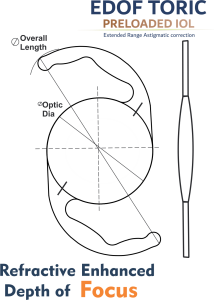

| Optic Size | 6.00 mm | 6.00 mm | ||
| Haptic Size | 13.00 mm | 12.50 mm | ||
| Haptic Design | Single Haptic | Plate Haptic | ||
| Optic | BiConvex, Posterior EDOF Toric Aspherical Surface | |||
| Edge Design | Continuous 360 degree Square edge | |||
| AC Depth | 5.25 mm | |||
| Incision Size | Semi loaded 2.2mm – Preloaded – 1.8mm | |||
| Diopter Range | 0.0 D to +30.0 D (Increments 0.50 D) | |||
| Refractive Index | 1.492 | |||
| IOL Plane | Apply Refractive cyl +0.40 D cyl and sphere power 1.5 D to 4.5 D 3.50 D Additional Power |
|||
| A Constant | Ultrasound | Optical Biometry | ||
| Nominal | A | 118.4 | A | 118.7 |
| Haigis | a0 | 1.45 | 1.75 | |
| Haigis | a1 | 0.40 | 0.40 | |
| Haigis | a2 | 0.10 | 0.10 | |
| HofferQ | pACD | 5.32 | 5.43 | |
| Holl. | 1 Const SF | 1.57 | 1.47 | |
| Barrett LF | 1.73 | 1.73 | ||
| SRK/T | A | 118.4 | A | 118.7 |
| SRK II | A | 118.4 | A | 118.9 |
| Clear / Yellow | A Clear | Lens | ||
| Model | In IOL Plane | |||
| MFH615 (T1) | 1.50 | |||
| MFH615 (T2) | 2.25 | |||
| MFH615 (T3) | 3.00 | |||
| MFH615 (T4) | 3.75 | |||
| MFH615 (T5) | 4.50 | |||
| MFH615 (T6) | 5.25 | |||
| MFH615 (T7) | 6.00 | |||
| Brand | Astigmatic | |
|---|---|---|
| Material | Toric Hydrophobic Foldable Single Piece, Automatic UV Filter |
|
| Model | AIT-455 | AIT-459 |
| Optic Size | 6.00 mm | 6.00 mm |
| Haptic Size | 13.50 mm | 13.50 mm |
| Haptic Design | Single Haptic | Plate Haptic |
| Optic | Biconvex, Convex, Posterior Toric Aspheric Surface | |
| Edge Design | Continuous 360 degree Square edge | |
| AC Depth | 5.00 mm | |
| Incision Size | 2.4 mm | |
| Diopter Range | Toric Cylinder power 1.50 D to 6.00 D in 0.75 increments Spherical power -10.00 D to 25.00 D in 0.50 increments |
|
| Refractive Index | 1.460 | |
| A constant | Ultrasound | Optical Biometry |
| Haigis | a0 | 5.34 |
| Haigis | a1 | 0.400 |
| Haigis | a2 | 0.100 |
| Hoff/Q | pACD | 4.80 |
| Holl. | Const @ | 1.02 |
| SRK/T | A | 117.8 |
| SRK II | A | 118.0 |
| Model | In IOL Plane | |
| MOT-415T1 (1.50) | 1.50 | |
| MOT-415T2 (2.25) | 2.25 | |
| MOT-415T3 (3.00) | 3.00 | |
| MOT-415T4 (3.75) | 3.75 | |
| MOT-415T5 (4.50) | 4.50 | |
| MOT-415T6 (5.25) | 5.25 | |
| MOT-415T7 (6.00) | 6.00 | |
